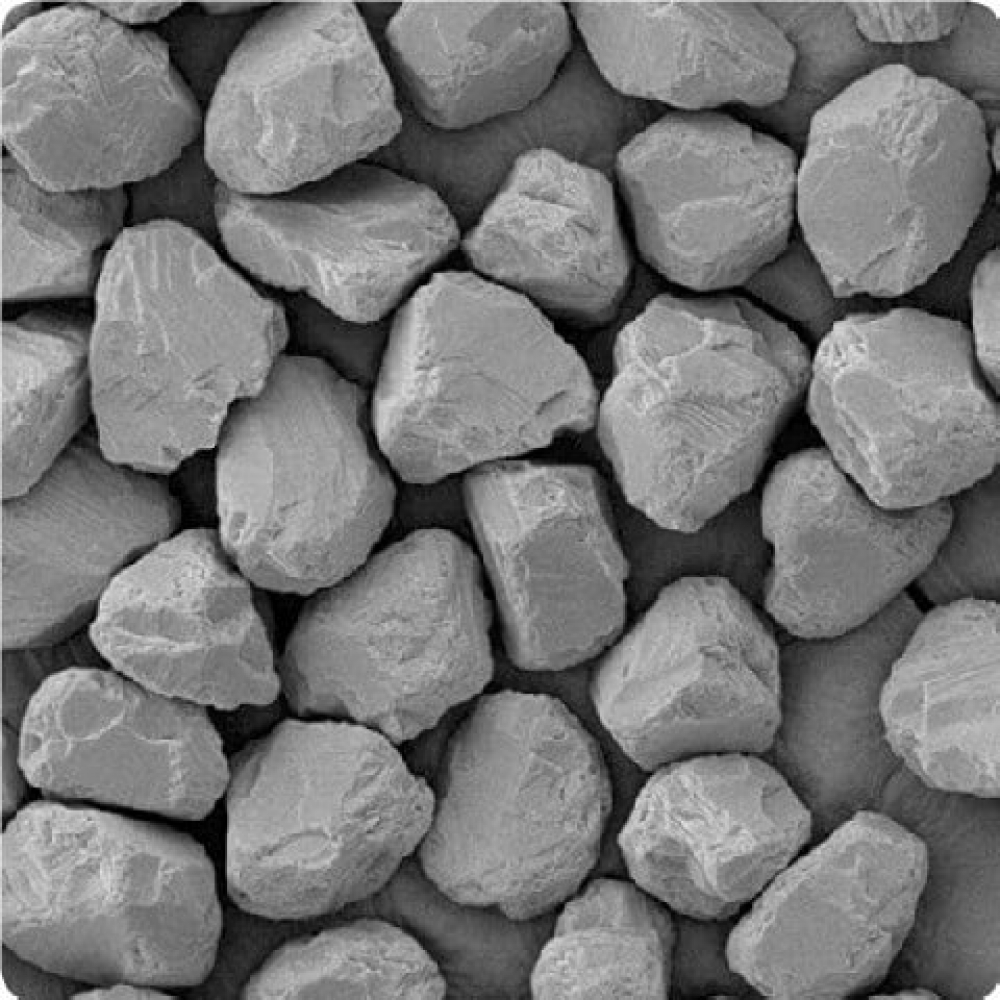

Gradient Diamond metal bond micron diamond is monocrystalline structures with high toughness, regular crystal shape, high particle strength, excellent dispersion. Processed using state-of-the-art grading equipment, our metal bond micron diamond provides well-controlled particle size distribution and surface cleanliness in a wide range of challenging applications.
Standard of China | Standard of international | Mesh | Polishing effect | Standard of China | Standard of international | Mesh | Polishing effect |
---|---|---|---|---|---|---|---|
W0.1 | 0-0.1 | 10000 | Super mirror polishing | W12 | 8-12 | 1600 | Normal polishing |
W0.25 | 0-0.25 | 60000 | W14 | 7-14 | 1500 | ||
W0.5 | 0-0.5 | 30000 | Mirror polishing | W14 | 8-16 | 1300 | |
W1 | 0-1 | 15000 | W20- | 10-20 | 1200 | ||
W1.5- | 0-2 | 13000 | W20 | 12-22 | 1000 | ||
W1.5 | 1-2 | 12000 | Fine polishing | W20+ | 15-25 | 800 | |
W2.5 | 1-3 | 10000 | W28 | 20-30 | 700 | ||
W3 | 2-3 | 7000 | W28+ | 22-36 | 600 | ||
W3.5 | 2-4 | 6500 | W40- | 20-40 | 500 | Rough grinding | |
W3.5 | 2-4 | 6000 | W40 | 30-40 | 450 | ||
W4 | 2-5 | 5000 | W40+ | 35-45 | 400 | ||
W5 | 3-6 | 4000 | W50 | 36-54 | 350 | ||
W6 | 4-6 | 3500 | 325/400 | D46 | 320 | ||
W7 | 4-8 | 3000 | 270/325 | D54 | 270 | ||
W10 | 4-9 | 2500 | Normal polishing | 230/270 | D64 | 230 | |
W10 | 5-10 | 2000 | 200/230 | D76 | 200 | ||
W10 | 6-12 | 1800 |
