Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)
Resin and Vitrified Bond Diamond Mesh Powder (RVD)

Resin and Vitrified Bond Diamond Mesh Powder (RVD)

  • Irregular crystal, sharp and rough surface
  • Low impurities and low magnetic susceptibility
  • Excellent brittleness and self-sharpness
  • High cutting efficiency
  • Sharp and wear-resistance
  • Extending the service life of products
Categories:RVD Diamond Mesh Powder
Add To BasketOnline ChatInquiry Us
DescriptionQualitySizeInquiry

Description

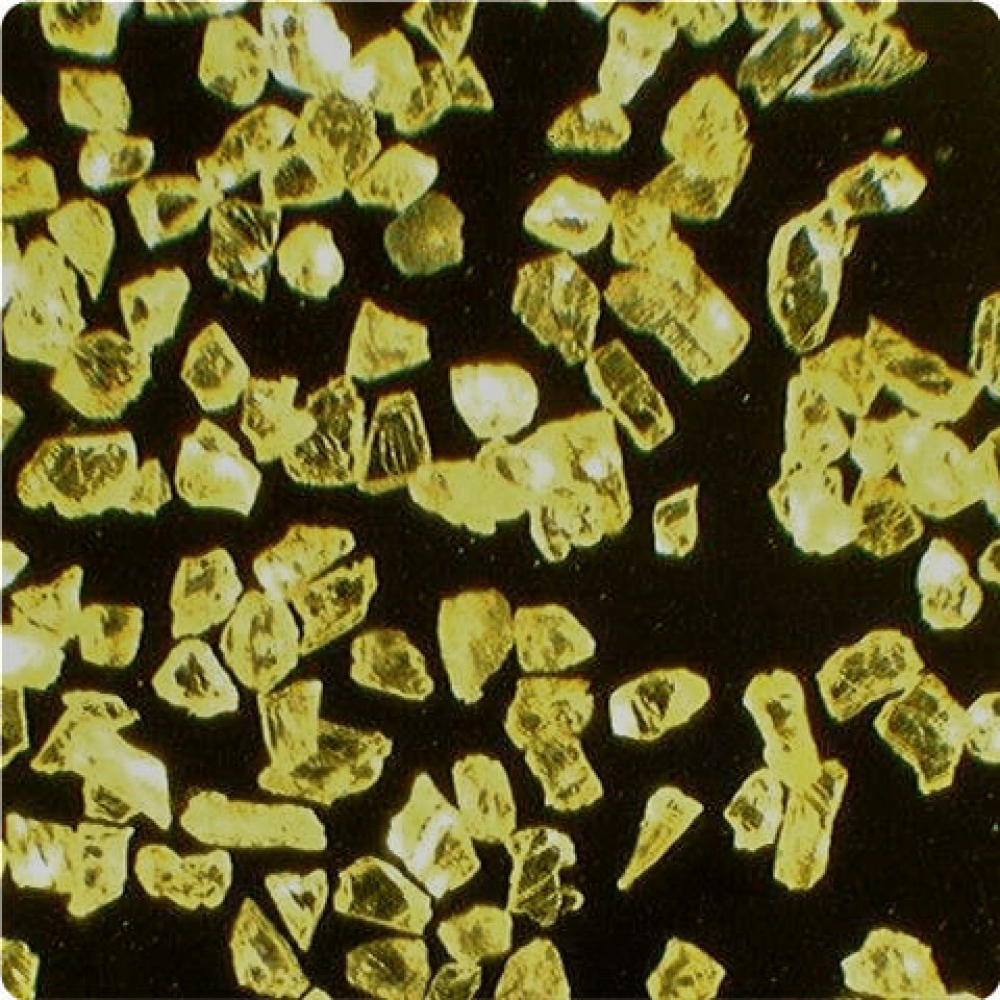

Gradient Diamond resin bond mesh diamond is a synthetic material with a friable crystal structure for use in vitrified and resin bond systems. The crystals are irregular, elongated and rough-edged, and are suitable for grinding tungsten carbide, ceramics and glasses.


The friability or breakdown of resin bond mesh diamond due to is a function of its polycrystalline structure and metallic inclusions in the crystal grains. Grains are microfractured during grinding and new edges formed for efficient, free-cutting action.

Resin bonded diamond provides higher grinding performance and lower grinding resistance and is widely used in wet and dry grinding fields to process hard materials. Generally, the resin binder system is a phenol resin or a polyimide resin. In special cases, special resin binders are also used. Adding suitable additives will make the resin binder more widely applicable. The optimal combination between the resin binder and the abrasive is the key to precision grinding, high-quality polishing and high grinding efficiency.

We provide products customized with particle sizes, shapes, toughness,Magnetism,Surface Cleanliness, Coating, and package methods according to customer requirements.

Resin bond mesh diamond is used to make cutting and grinding tools. It is mainly used for grinding hard alloys, non-metal materials, cutting hard and brittle cemented carbides, non-metal minerals, etc. Such as hard alloys, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron.

Quality

Size

GB/T6406-1995 ISO FEPA
USA
ANSI B74.16-1971
JAPAN
JIS4130-1988
Theoretical
Basic Size
Russia
9206-80
Grain
No.
Grain
Size
Grain
No.Ⅰ
Grain
No.Ⅱ
Grain
Size
Grain
No.
Grain
Size
Grain
No.
Grain
Size
Grain
No.
Grain
Size
Grain
No.
Grain
Size
Grain
No.
Grain
Size
40/50 425/300 427 40/50 425/300 B/427 355/300 40/50 425/300 40/50 425/300 0.015 0.378 500/400 500/400
50/60 300/250 301 50/60 300/250 B/301 300/250 50/60 300/250 50/60 300/250 0.011 0.288 400/315 400/315
60/80 250/180 252 60/80 250/180 B/252 250/180 60/80 250/180 60/80 250/180 0.009 0.226 250/200 250/200
80/100 180/150 181 80/100 180/150 B/181 180/150 80/100 180/150 80/100 180/150 0.0069 0.174 200/160 200/160
100/120 150/125 151 100/120 150/125 B/151 150/125 100/120 150/125 100/120 150/125 0.0058 0.148 160/125 160/125
120/140 125/106 126 120/140 125/106 B/126 125/106 120/140 125/106 120/140 125/106 0.0048 0.123 125/100 125/100
140/170 106/90 107 140/170 106/190 B/107 106/190 140/170 106/190 140/170 106/190 0.0041 0.103 100/80 100/80
170/200 90/75 91 170/200 90/75 B/91 90/75 170/200 90/75 170/200 90/75 0.0034 0.086 80/63 80/63
200/230 75/63 76 200/230 75/63 B/76 75/63 200/230 75/63 200/230 75/63 0.0030 0.075 63/50 63/50
230/270 63/53 64 230/270 63/53 B/64 63/53 230/270 63/53 230/270 63/53 0.0026 0.066 50/40 50/40
270/325 53/45 54 270/325 53/45 B/54 53/45 270/325 53/45 270/325 53/45 0.0022 0.057
325/400 45/38 46 325/400 45/38 B/45 45/38 325/400 45/38 325/400 45/38 0.0019 0.048
