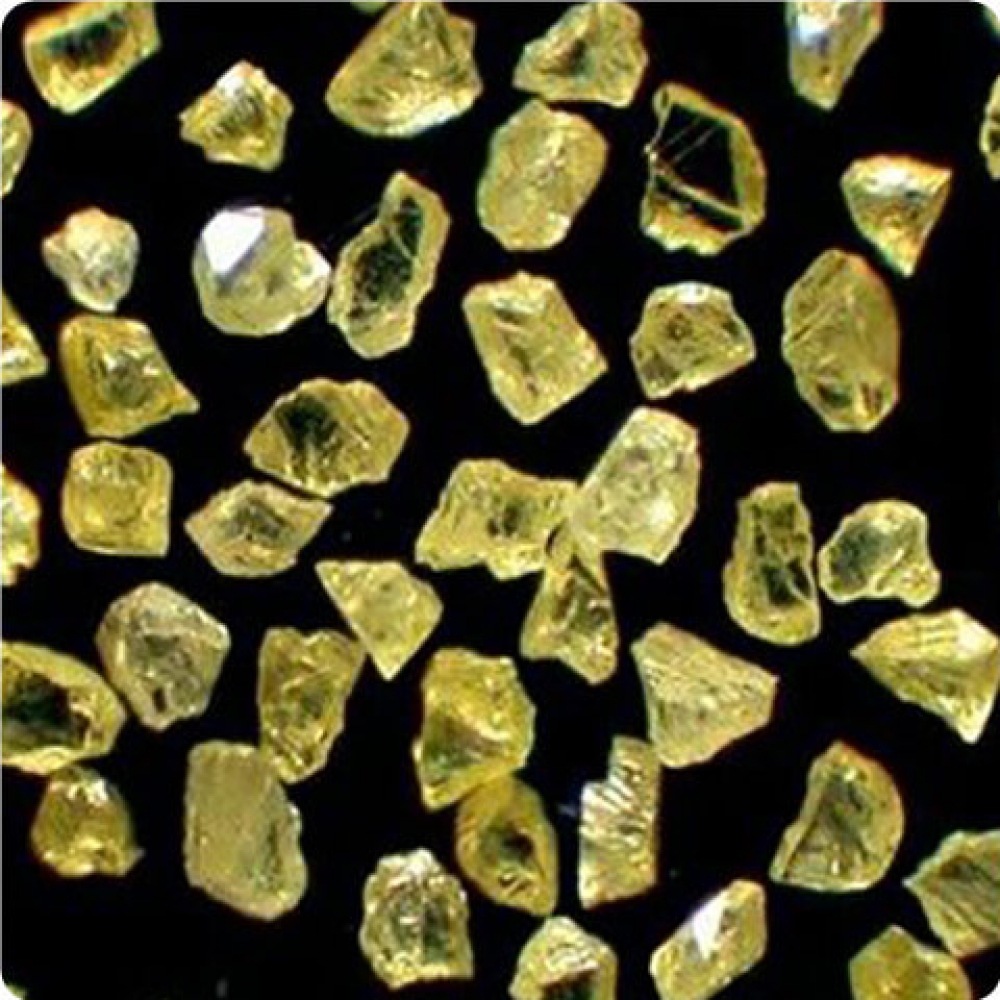

Metal Bond Diamond Mesh Powder (MBD)

Relatively regular crystal form
Good hardness and impact resistance
Low impurities
Concentrated particle size distribution.
The satisfactory surface finish and material removal rates.

Categories:MBD Diamond Mesh Powder

Add To Basket Online Chat Inquiry Us

DescriptionQualitySizeInquiry

Description

Gradient Diamond metal-bonded diamonds use MBD series high-strength and high-tech diamonds as raw materials. Compared with resin-bonded diamonds, its growth is slow, so it has a single crystal structure with high toughness and typical bulk crystal. It is suitable for resin, metal, and electroplating systems for applications, such as grinding ceramics, cemented carbide and glass.

We provide products customized with shapes and PSD according to customer requirements.

It is suitable for resin, metal, and electroplating systems for applications, such as grinding ceramics, cemented carbide and glass.

Metal bonded abrasive tools, it is mainly used for rough grinding, fine grinding and cutting of non-metal materials such as glass, ceramics, stone, concrete, and semiconductor materials. For example, metal bonding superabrisive wheels, rollers.

Electroplated bonding abrasives, it is mainly used for the grinding of molds made of hard alloy or hard-to-grind steel, and the processing of nesting of optical glass and semiconductor silicon wafers. Such as electroplated diamond assortment, nesting knife, small grinding head, electroplating reamer and so on.

Ceramic bonded abrasive tools, it can well meet the high-precision grinding requirements of difficult-to-machine materials and is suitable for use in CNC grinders and automated production lines, such as flat, cup, and bowl grinding wheels.

Quality

Size

GB/T6406-1995		ISO			FEPA		USA ANSI B74.16-1971		JAPAN JIS4130-1988		Theoretical Basic Size		Russia 9206-80
Grain No.	Grain Size	Grain No.Ⅰ	Grain No.Ⅱ	Grain Size	Grain No.	Grain Size	Grain No.	Grain Size	Grain No.	Grain Size	Grain No.	Grain Size	Grain No.	Grain Size
40/50	425/300	427	40/50	425/300	B/427	355/300	40/50	425/300	40/50	425/300	0.015	0.378	500/400	500/400
50/60	300/250	301	50/60	300/250	B/301	300/250	50/60	300/250	50/60	300/250	0.011	0.288	400/315	400/315
60/80	250/180	252	60/80	250/180	B/252	250/180	60/80	250/180	60/80	250/180	0.009	0.226	250/200	250/200
80/100	180/150	181	80/100	180/150	B/181	180/150	80/100	180/150	80/100	180/150	0.0069	0.174	200/160	200/160
100/120	150/125	151	100/120	150/125	B/151	150/125	100/120	150/125	100/120	150/125	0.0058	0.148	160/125	160/125
120/140	125/106	126	120/140	125/106	B/126	125/106	120/140	125/106	120/140	125/106	0.0048	0.123	125/100	125/100
140/170	106/90	107	140/170	106/190	B/107	106/190	140/170	106/190	140/170	106/190	0.0041	0.103	100/80	100/80
170/200	90/75	91	170/200	90/75	B/91	90/75	170/200	90/75	170/200	90/75	0.0034	0.086	80/63	80/63
200/230	75/63	76	200/230	75/63	B/76	75/63	200/230	75/63	200/230	75/63	0.0030	0.075	63/50	63/50
230/270	63/53	64	230/270	63/53	B/64	63/53	230/270	63/53	230/270	63/53	0.0026	0.066	50/40	50/40
270/325	53/45	54	270/325	53/45	B/54	53/45	270/325	53/45	270/325	53/45	0.0022	0.057
325/400	45/38	46	325/400	45/38	B/45	45/38	325/400	45/38	325/400	45/38	0.0019	0.048
